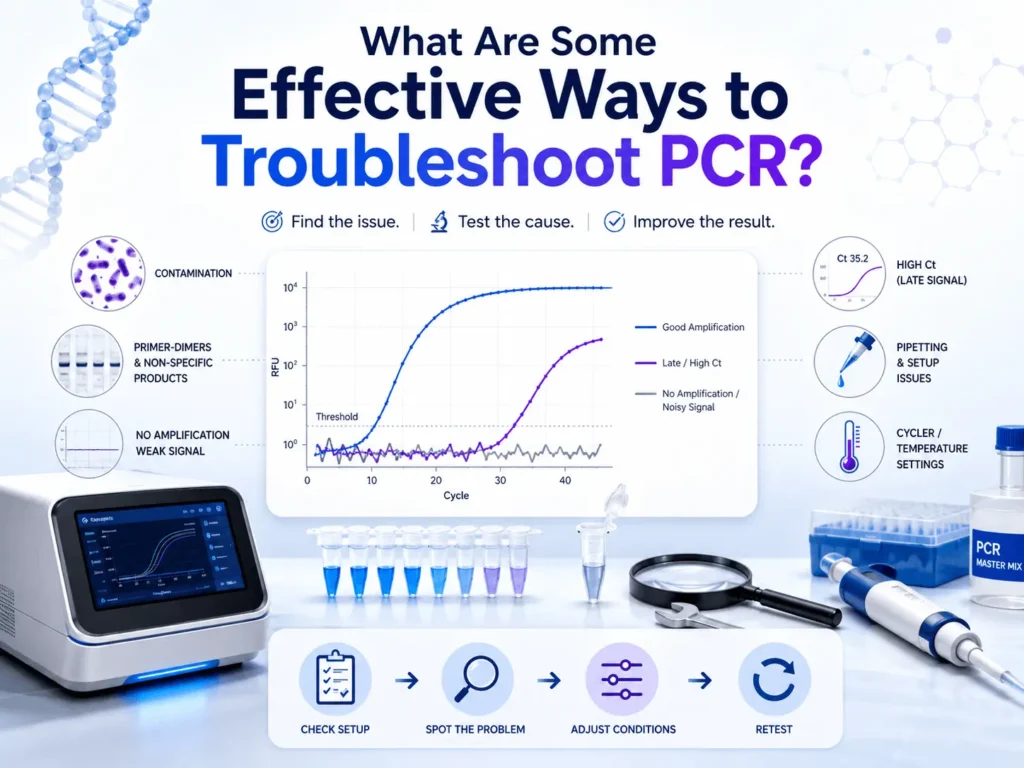

What Are Some Effective Ways to Troubleshoot PCR?

PCR troubleshooting works best when you stop treating every failed reaction as a separate mystery. Start with the controls, then check the template, primers, reagents, cycling program, and detection method in a fixed order. Change only one condition at a time so you can tell which adjustment corrected the problem.

A blank gel does not always mean the polymerase failed. Weak bands may come from poor template quality, an unsuitable annealing temperature, or too few cycles. Extra bands often point to low primer specificity. Smears can result from excessive template, damaged DNA, unsuitable magnesium levels, or overly permissive cycling conditions.

The fastest route to a reliable result is usually not adding more reagents at random. It is comparing the failed reaction with a known working reaction and narrowing down the possible cause through controlled tests.

What is the best way to troubleshoot PCR?

The best way to troubleshoot PCR is to follow a fixed diagnostic sequence: inspect the controls, verify the reaction setup, test template quality, review primer design, and then adjust cycling conditions. This order helps separate experimental errors from assay-design problems.

PCR depends on several linked components. A problem with any one of them can produce similar symptoms.

For example, no visible band could mean:

• The target DNA was absent
• The template contained inhibitors
• A reagent was omitted
• The primers did not bind
• The annealing temperature was too high
• The extension time was too short
• The thermal cycler program was incorrect
• The gel or staining method failed

Changing several conditions at once may produce a band, but it will not tell you why the reaction initially failed. A controlled approach gives you an answer that can be repeated in future runs.

Keep a written record of the reaction volume, reagent lot numbers, template concentration, primer concentration, thermal program, tube type, cycler model, and gel conditions. Small differences between runs are easier to spot when these details are documented.

Start by reviewing the PCR controls

PCR controls show whether the problem lies in the assay, the sample, or the reaction setup. A useful run normally includes a positive control and a no-template control. Some applications also need an extraction control or an internal amplification control.

Controls should be examined before any changes are made to the reaction.

Positive control

A positive control contains template DNA that is already known to amplify with the selected primer pair. It tells you whether the primers, polymerase, buffer, nucleotides, thermal program, and product-detection method can work together.

When the positive control fails along with the samples, the problem is probably not limited to sample quality. Check for missing reagents, degraded components, incorrect temperatures, pipetting errors, or a faulty detection step.

When the positive control works but the samples fail, focus on the samples. They may contain too little target, degraded nucleic acid, inhibitors, or sequence variation at a primer-binding site.

No-template control

A no-template control, often called an NTC, contains all reaction components except sample DNA. Molecular-grade water replaces the template.

A band in the NTC may indicate contaminated water, primers, master mix, pipettes, tubes, or work surfaces. It may also represent primer-dimer formation, especially when the product is much smaller than the expected amplicon.

False-positive amplification can arise when previously amplified PCR material enters a new reaction. Because amplified DNA is present at very high copy numbers, tiny traces can contaminate later experiments. Separate pre-amplification and post-amplification work areas whenever possible.

Extraction control

An extraction control passes through the same nucleic acid extraction process as the test samples. It can expose contamination introduced during extraction or show whether the extraction procedure recovered amplifiable nucleic acid.

This control is particularly helpful when every sample from one extraction batch fails while a purified positive-control template still amplifies.

Internal amplification control

An internal amplification control is amplified in the same tube or in a parallel reaction. Failure of this control can reveal sample-specific PCR inhibition.

This distinction is important. A negative target result accompanied by a successful internal control suggests that the target was not detected. Failure of both reactions suggests that the result may be invalid rather than truly negative.

Check the DNA or RNA template quality

A PCR reaction needs template nucleic acid that is sufficiently intact, clean, and present at a workable concentration. Too little template can produce a faint band or no band. Too much template can introduce inhibitors and increase nonspecific amplification.

Template quality should be checked before extensive changes are made to the PCR program.

Confirm that the target is present

The sample must contain the sequence located between the forward and reverse primers. This sounds obvious, yet it is easy to overlook when working with mixed samples, different organisms, alternative transcripts, genetic variants, or plasmid constructs.

Verify the following details:

• The correct organism or cell line was used
• The target region exists in the selected sample
• The primers face one another on opposite strands
• The expected product length matches the reference sequence
• The plasmid or construct contains the correct insert
• The target is expressed when cDNA is being amplified

For RNA-based experiments, low or tissue-specific gene expression may make a technically valid reaction appear to have failed.

Examine template integrity

Fragmented DNA may still support amplification of a short target but fail with a long amplicon. RNA is even more vulnerable to degradation.

Run the extracted nucleic acid on a gel or use an appropriate quality measurement method when degradation is suspected. A short control amplicon can also help. If the short region amplifies but a long target does not, template fragmentation or insufficient extension time may be involved.

Repeated freeze-thaw cycles can reduce sample quality. Store working aliquots when valuable samples will be tested many times.

Look for PCR inhibitors

Substances carried over from extraction can interfere with polymerase activity. Possible inhibitors include phenol, ethanol, salts, heme, humic compounds, polysaccharides, detergents, and some anticoagulants.

A simple dilution test is often informative. Prepare several template dilutions and run them under identical conditions. A diluted sample may produce a stronger band than the undiluted sample because dilution lowers the inhibitor concentration.

This result can feel backward at first. Less template produces more product, yet the explanation is that the polymerase can now function more freely.

Re-purification may be needed when dilution does not solve the problem or when target copy numbers are already low.

Measure template concentration carefully

High DNA concentration does not automatically produce stronger amplification. Excess genomic DNA can increase viscosity, carry more contaminants into the tube, and expose primers to a larger number of partially matching sites.

Test a small dilution series rather than choosing one concentration based only on a spectrophotometer reading. Concentration measurements do not always reveal whether the DNA is intact or free from inhibitors.

Examine primer design and primer concentration

Primers control which DNA region is copied. Poor primer design can cause no amplification, weak yield, extra bands, primer-dimers, or inconsistent results across samples.

A primer pair should bind the desired target strongly enough to support extension while avoiding close matches elsewhere in the template.

Verify the primer sequences

Compare the ordered primer sequences with the intended target sequence. Check for reversed sequences, missing bases, transcription errors, and incorrect strand orientation.

Also verify whether the primer tubes were labeled correctly and reconstituted to the intended concentration. A tenfold error in the stock or working solution can produce confusing results even when the sequences are correct.

Check primer melting temperatures

The forward and reverse primers should have reasonably similar melting temperatures. Large differences can make it difficult to select an annealing temperature that supports both primers.

General primer-design guidance often places primer melting temperatures near 55–70°C, with no more than about a 5°C difference between the pair. Common starting designs use primers around 15–30 nucleotides long and a GC content near 40–60%, though the suitable values depend on the assay and polymerase system.

Treat calculated melting temperatures as starting estimates. Different calculation tools may produce different values because salt, magnesium, primer concentration, and sequence assumptions differ.

Check for secondary structures

Primers may fold back on themselves or pair with one another. Complementarity near the 3′ ends is particularly troublesome because polymerase can extend from a paired 3′ end.

Possible structures include:

• Hairpins within one primer
• Self-dimers between copies of the same primer
• Heterodimers between forward and reverse primers
• Strong runs of complementary bases near the 3′ ends

Small products near the bottom of an agarose gel often suggest primer-dimers. In dye-based real-time PCR, primer-dimers may appear as a separate low-temperature melt peak. Melt-curve analysis can help distinguish the intended product from unwanted products.

Search for unintended binding sites

A primer may match more than one location in genomic DNA or cDNA. Check both primers against the relevant reference sequence rather than checking only the intended target.

Pay close attention to the final bases at each 3′ end. Polymerase extension depends heavily on pairing at this end, so unintended sites with strong 3′ matches may still amplify even when mismatches exist elsewhere.

For reverse-transcription PCR, review whether primers can amplify genomic DNA. Primers that span an exon-exon junction or sit in separate exons divided by a large intron may help distinguish cDNA from genomic material.

Test primer concentration

Excess primer can increase nonspecific amplification and primer-dimer formation. Too little primer may reduce product yield.

Use the polymerase or master-mix manufacturer’s recommended range as a starting point. Test a narrow concentration series when primer-related failure is suspected.

Do not alter primer concentration, magnesium concentration, annealing temperature, and template amount in the same experiment. That creates too many possible explanations for the result.

Confirm reagent quality and reaction setup

Missing, degraded, poorly mixed, or incorrectly diluted reagents are common causes of failed PCR. Before redesigning an assay, repeat the reaction with a carefully prepared master mix and fresh working solutions.

PCR reagents should remain cold during setup unless the selected kit gives different instructions.

Check every reaction component

A basic PCR usually contains:

• DNA template
• Forward primer
• Reverse primer
• DNA polymerase
• Deoxynucleotide triphosphates
• Reaction buffer
• Magnesium ions
• Nuclease-free water

Some polymerase mixes already contain buffer, magnesium, and dNTPs. Adding them again may disturb the reaction chemistry. Read the product instructions rather than assuming all master mixes have the same composition.

Create a setup checklist. Physically mark each component after it is added. This small habit prevents many blank gels.

Prepare a master mix

A master mix reduces well-to-well variation because the shared reagents are combined once and distributed across the reaction tubes. Only template or sample-specific components are added separately.

Prepare slightly more volume than the exact total needed. Pipetting losses can leave the final tube short of one or more components.

Mix the master mix gently but thoroughly. Brief centrifugation can collect liquid from the tube walls and remove air bubbles.

Review reagent storage

Polymerases, dNTPs, primers, probes, and buffers can lose performance after poor storage or repeated temperature changes. Check expiration dates, freezer temperatures, storage instructions, and the number of freeze-thaw cycles.

When an assay that previously worked suddenly fails, compare old and new reagent lots. Run a known working batch beside the suspect batch when material is available.

Confirm pipette performance

PCR volumes are small, so a minor pipetting error can change component concentrations enough to affect the result.

Check that the pipette range matches the selected volume. Avoid using a large-volume pipette for very small additions. Inspect tips for secure attachment and watch for liquid left inside the tip after dispensing.

Calibration should be considered when multiple assays show unexplained volume-dependent variation.

Review the thermal cycling conditions

PCR cycling conditions control strand separation, primer binding, and DNA synthesis. Incorrect temperatures or hold times can prevent amplification or allow unwanted products to accumulate.

Compare the programmed method with the written protocol line by line.

Verify the denaturation step

The initial denaturation must separate the template strands and, in hot-start systems, may also activate the polymerase.

Insufficient denaturation can reduce access to GC-rich or structurally complex templates. Excessive heat exposure can damage some polymerases or reduce activity over the run.

Use the conditions recommended for the selected enzyme rather than copying a program created for another polymerase.

Test the annealing temperature

Annealing temperature is one of the most useful variables during PCR troubleshooting.

A temperature that is too high may prevent primers from binding, producing weak amplification or no product. A temperature that is too low may allow primers to bind partially matching sequences, producing extra bands or smears.

A gradient PCR can test several annealing temperatures in one run. Choose the highest temperature that still produces a strong, clean target band.

When a gradient cycler is not available, test temperatures in small steps. Manufacturer guidance commonly suggests lowering annealing temperature by about 2–3°C when yield is poor and raising it by similar increments when unwanted products appear.

Check the extension temperature and time

Extension conditions depend on the polymerase and amplicon length. A long product usually needs more extension time than a short product.

Too little time can produce weak or incomplete products. Excessive extension time may allow unwanted amplification in some assays. According to Bio-Rad overly long extension are the possible contributors to nonspecific bands and primer-dimers.

High-fidelity polymerases may have different extension rates and temperature requirements from standard Taq. Follow the enzyme-specific instructions.

Review the number of cycles

More cycles can increase the visibility of a low-copy product, but cycle number is not a harmless setting.

Excessive cycling can increase nonspecific bands, primer-dimers, background amplification, and sequence errors. It can also push a reaction into the plateau phase, where reagents become limited and product accumulation is no longer proportional to the starting template.

Raise the cycle number only after checking template quality, primer binding, and reaction chemistry.

Adjust magnesium concentration carefully

Magnesium ions support polymerase activity and affect primer binding, dNTP interactions, product yield, and specificity. Both low and high magnesium concentrations can produce poor PCR results.

Low magnesium may reduce enzyme activity and cause weak amplification. High magnesium can stabilize imperfect primer-template pairing, which may produce nonspecific bands.

Many commercial buffers and master mixes already contain magnesium at a tested concentration. Extra magnesium should not be added unless the formulation permits adjustment.

When testing is needed, create a small concentration series while keeping all other conditions unchanged. The best concentration is the one that gives a strong target band with the least background, not simply the one that creates the brightest total signal.

How do you troubleshoot no amplification?

No amplification should be investigated by confirming that product detection worked, checking the positive control, and then reviewing omitted reagents, template quality, primer compatibility, and cycling conditions.

Start with the gel. Confirm that the DNA ladder was visible and migrated correctly. If the ladder is also absent, the PCR may not be the problem. Check the stain, loading dye, electrode orientation, running buffer, imaging settings, and gel preparation.

When the ladder is visible but every PCR lane is blank:

• Check whether polymerase, primers, template, and master mix were added.
• Confirm that the cycler program ran and the heated lid was active where required.
• Repeat the reaction with a known positive template.
• Test fresh reagents or a known working master mix.
• Lower the annealing temperature in small steps.
• Increase extension time when the target is long.
• Test a template dilution to check for inhibition.
• confirm the primer sequences and target location.

When the positive control works but samples remain blank, sample quality, target absence, inhibition, or a primer-binding sequence difference is more likely.

How do you troubleshoot weak or low-yield PCR products?

Weak PCR bands usually result from low target quantity, partial inhibition, poor primer binding, limited extension, reagent degradation, or product loss during gel loading and staining.

Begin with a template dilution series. This single test can reveal both insufficient template and inhibition.

Next, test an annealing-temperature gradient. A modest reduction may improve primer binding, though going too low can create extra products.

Other measured changes include:

• Increasing extension time for long amplicons
• Using fresh polymerase or master mix
• Raising cycle number slightly
• Testing a different template input
• Increasing primer concentration within the recommended range
• Selecting a polymerase made for GC-rich or long targets
• Re-purifying the template

Do not judge yield from band brightness alone when comparisons must be quantitative. End-point PCR products reach a plateau, and gel staining varies with product size, loading volume, dye, and imaging exposure.

How do you troubleshoot multiple or nonspecific bands?

Multiple PCR bands usually mean that one or both primers are binding unintended sequences. The most direct corrections are raising the annealing temperature, reducing primer or template concentration, using hot-start polymerase, shortening extension time, or redesigning the primers.

Start with a temperature gradient. This often provides the clearest answer because higher annealing temperatures weaken imperfect primer binding.

Next, reduce the amount of template. Large amounts of genomic DNA present more unintended binding sites.

A hot-start polymerase can also help. It remains inactive during room-temperature setup and becomes active during the initial heating stage. This reduces extension from primers that pair incorrectly while the reaction is being assembled.

When several clean bands continue to appear across a wide temperature range, primer redesign may be more productive than repeated chemical adjustments.

How do you troubleshoot smearing on an agarose gel?

A smear can come from the PCR reaction, degraded template, excessive product loading, unsuitable gel conditions, or DNA degradation after amplification.

First determine whether the smear appears only in PCR lanes. A smeared ladder points toward the gel, buffer, voltage, staining, or electrophoresis setup rather than the PCR.

PCR-related smearing may be reduced by:

• Raising the annealing temperature
• Using fewer cycles
• Reducing template input
• Lowering primer concentration
• Testing lower magnesium levels
• Shortening overly long extension periods
• Using hot-start polymerase
• Improving template purification
• Redesigning low-specificity primers

Overloading a gel well can make a clean PCR product look smeared. Load less product before making major changes to the amplification method.

How do you troubleshoot primer-dimer formation?

Primer-dimers form when primers pair with themselves or with each other and are extended by the polymerase. They often appear as very small bands, usually well below the intended product.

Raise the annealing temperature and reduce primer concentration first. A hot-start enzyme may reduce dimers formed during reaction setup.

Review both primer sequences for 3′ complementarity. When strong pairing exists at the 3′ ends, redesign is often the most reliable answer.

Primer-dimers matter even when the desired band is present. They consume primers and dNTPs, compete with the target, and may distort fluorescence measurements in dye-based real-time PCR.

How can PCR contamination and false positives be prevented?

PCR contamination is controlled through physical separation, clean technique, suitable controls, and careful handling of amplified material. Prevention is easier than identifying the source after contamination has spread.

Prepare reactions in an area that has never been exposed to amplified PCR products. Keep post-PCR tubes, gels, and equipment away from the setup space.

Use dedicated pipettes, filtered tips, clean gloves, and separate reagent aliquots. Open tubes carefully to reduce aerosol formation.

Clean benches and equipment using methods suitable for the suspected contaminant. Replace water, primers, and master-mix aliquots one at a time when contamination persists.

Never open completed amplification tubes in the pre-PCR area. A single tube may contain enough target copies to contaminate many future reactions.

Use a step-by-step PCR troubleshooting workflow

A repeatable workflow prevents random adjustments and helps identify the actual source of failure.

Use this order:

• Inspect the ladder, gel, stain, and imaging method.
• Read the positive and negative controls.
• Compare the cycler program with the written method.
• Confirm that every reagent was added at the correct concentration.
• Repeat the assay with a known working template.
• Test template dilutions for inhibition.
• Run an annealing-temperature gradient.
• Review primer sequences and secondary structures.
• Test one reagent concentration at a time.
• Redesign the primers when controlled changes do not solve the problem.

A small experimental matrix can save reagents. Rather than testing many unrelated conditions, select one variable and compare three or four levels in the same run.

For example, test four annealing temperatures while using one master mix, one template batch, and the same cycling conditions. The result becomes much easier to read.

When should you redesign the PCR assay?

Primer redesign is appropriate when no suitable annealing temperature gives a clean product, unintended products remain dominant, strong primer-dimers persist, or sequence analysis reveals poor target specificity.

Redesign may also be needed when:

• A genetic variant overlaps the primer-binding site
• The target region has extreme GC content
• The amplicon is unnecessarily long
• Primers amplify related genes or pseudogenes
• Genomic DNA cannot be separated from cDNA amplification
• Secondary structures interfere with primer binding
• The two primers have poorly matched melting temperatures

Choose a shorter or less repetitive target region when possible. For degraded samples, a shorter amplicon often performs better because intact copies of the full target are more likely to remain.

After ordering new primers, test them with positive, negative, and no-template controls before using valuable samples.

Careful testing turns PCR troubleshooting into a repeatable process

PCR failures become easier to solve when every result is treated as evidence. A failed positive control points toward the reaction or setup. A clean positive control beside failed samples points toward the template. Extra bands direct attention toward primer specificity and annealing conditions. A positive no-template control raises contamination or primer-dimer concerns.

The strongest troubleshooting habit is changing one variable at a time. Start with controls, verify the basic setup, and work through the template, primers, reagents, and cycling program in a consistent order.

That approach does more than rescue one experiment. It creates a PCR method that another researcher can repeat, understand, and trust.
